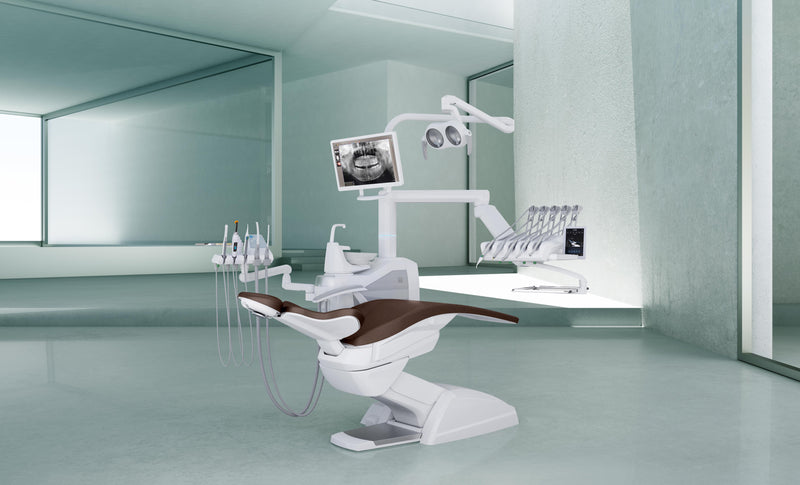

STERN WEBER S300 basic package

Medical block

• Upper or lower hose suspension
• Double articulated arm, rotation up to 320°, vertical movement up to 47 cm
• Pneumatic brake, 2-tray table
• Up to 6 tools (6th slot - optional)
• Automatic cleaning, individual spray control, rocker lock
• Included modules:
  • 6-function spray handle (straight/angled)
  • Turbine hose with LED
  • Brushless micromotor SW i-XR3 L (100–40,000 rpm / 3.3 Ncm)

Display and control

• FULL TOUCH 7” tempered glass display
• Icon-based interface (up to 4 operator profiles)
• Control of: speed, spray, lighting, chair, endo files, positioning, program storage

Water block

• Ceramic bowl, rotatable up to 270°
• Replaceable cartridge, hot water option
• Prepared for aspiration system with 2 hoses and filters

Assistant block

• 3 sockets (option for 5)
• Adjustable height
• Possible instruments: turbine, spray, photopolymer, micromotor, camera, scaler

Lighting – VENUS MCT LED

• Intensity: 5,000 – 50,000 Lux
• CRI > 95, 3 color levels (4300K, 5000K, 5500K)
• NO TOUCH touch control
• Composite mode, 3D positioning, disinfectable handle

Patient chair STERN 300 P

• Electromechanical, height 37–80 cm, up to 190 kg
• Trendelenburg, 4+2 positions, Soft-Motion and Sliding function
• Choice of backrest (STERN/NORDIC), universal headrest, seamless upholstery

Steering and pedal

• Multifunctional pedal: speed control, blowing, water, chair
• Keyboard with basic functions

Additional modules (optional)

• Ultrasonic scaler SW SC-A3, micromotor SW i-XS4 (5.3 Ncm)
• Apex locator, peristaltic pump, piezo surgical instruments (5 tips)
• BIOSTER + IWFC – automatic disinfection of hoses
• NFC bracelets (3 pcs.) – automatic loading of settings
• LED status indication, electromechanical spittoon, cup sensor
• Monitor arm and BARCO 22” HD monitor
• Intraoral camera C-U2 + MACRO lens
• Chairs T7 and T8 (adjustable backrests and heights)

Tools (Options)

• Silent Power Evo 4 LK turbine (350,000 rpm, LED)
• GOLDSPEED S1-L (1:1, 40,000 rpm, Ø2.35 mm)
• GOLDSPEED M5-L (1:5, 200,000 rpm, Ø1.6 mm, 4-spray)
